App Settings

3.1 Open Settings

Note: All settings take effect on the next mirroring session after you save.

3.1.1 Click the Menu button in the top-right corner.

3.1.2 In the menu, click Settings.

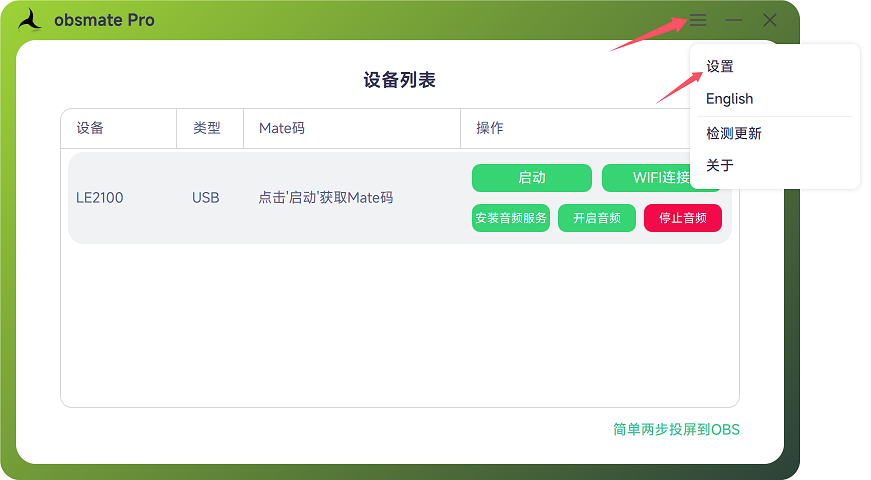

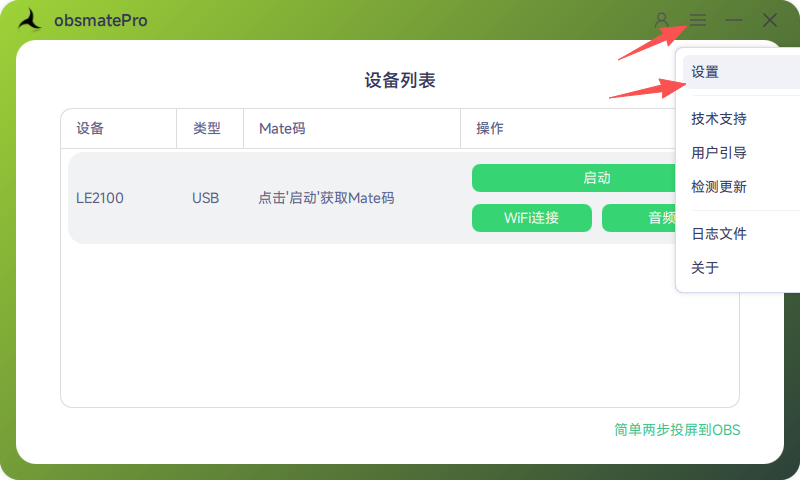

obsmatePro settings entry illustration

3.1.3 The Settings dialog opens.

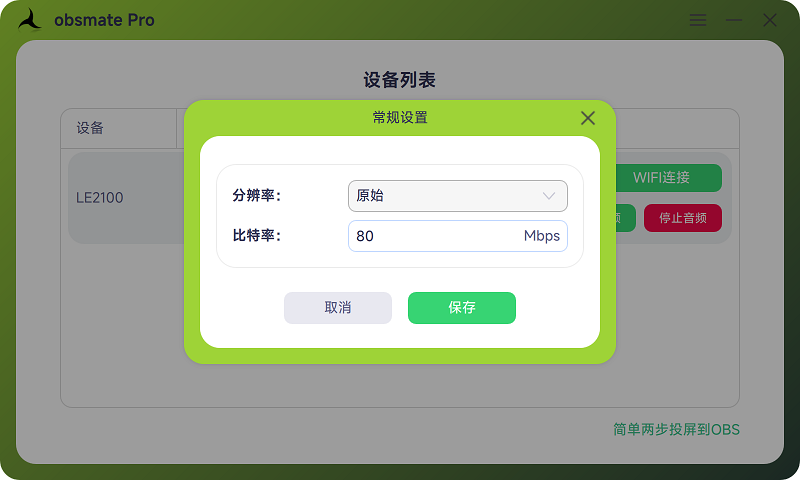

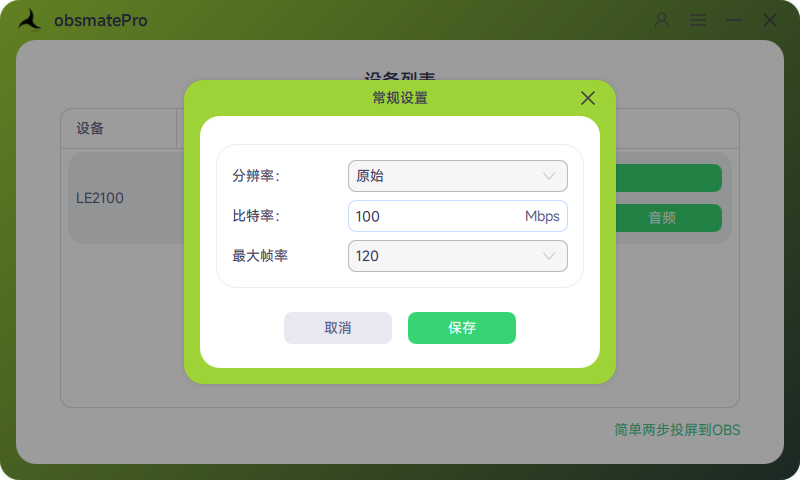

obsmatePro settings illustration

3.2 Video Quality

3.2.1 Bitrate: Higher bitrate improves quality but may increase latency. Adjust based on phone and PC performance.

Note: Maximum bitrate range: 1–100 Mbps. Flagship phones: 64 Mbps or higher recommended.

3.2.2 Resolution: Original is recommended—the mirror uses your phone’s native resolution.

Example: If Xiaomi 15 Ultra is 3200×1440, choose Original to mirror at 3200×1440.
